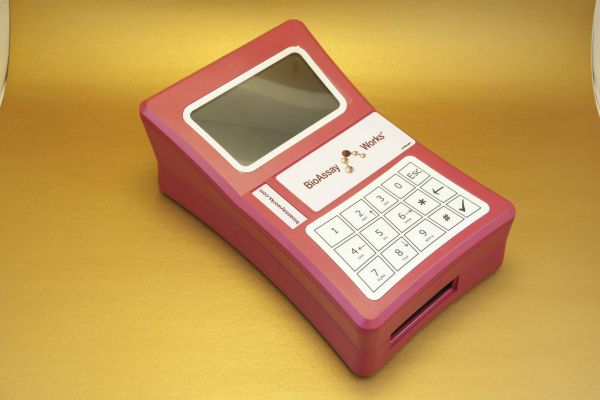

Multiple Line Reader (for use with BAW tests only)

Our Multiple Line Reader is a portable universal lateral-flow reader. It can be utilized for most rapid assays with a single test (T) and control (C) line that rely on color change.

Reader Specifications:

Dimensions: 210 mm x 130 mm x 50/70 mm (L x W x H)

Cartridge Dimensions: Max. 95 mm x 50 mm x 7 mm (L x W x H)

Weight: 1.76 lbs.

Reading Time: Approx. 15 seconds/measurement

Memory: Integrated flash-ROM

Memory Capacity: >1000 data files

Interfaces: USB port, D-sub socket (for printer), SD card slot

Power Supply: Lithium ion battery (rechargeable), AC/DC converter 100-240 V; 47-63 Hz

Battery Life: 8 hours

Barcode Reader: Integrated for test recognition (barcode label on test cartridge backside)

Operation Temperature: 10C (50CF) – 50C (95CF)

15 x 18 x 6 in
